Pelsue - Weld on Plate (For Fall Arrest Tower): FB-SW3

• Weld on plate with tie-off anchor
• Made from the finest materials
• Includes mounting ears

About:

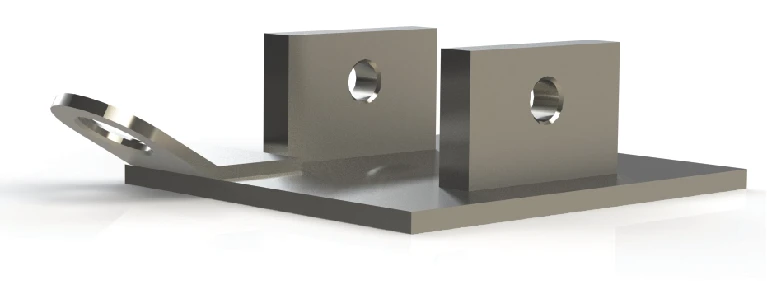

FB-SW3 Fall Arrest Tower Base Plate With Tie-Off Anchor, 2-Ear Pin Mount - Weld-On

General Specifications:
1. The FB-SW3 Fall Arrest Tower Weld-On Base Plate is intended to be permanently attached upon structural steel members and be used with any one of Pelsue’s removable mounting Fall Arrest Towers.
2. Plate is to be welded on to surface adhering to all PELSUE guidelines.

Materials & Construction:
General Construction: Welded Carbon Steel
Weld Certification: AWS - D1.1
Material: ASTM A36 STEEL

Dimensions:
Length - 9.0”
Width - 8.0”
Height - 2.9”
Weight - 12 LBS. (5.5 KG.)

Strength & Testing Data:
Torsional Proof Load: 20,274 FT.-LB. (27,488 N-M) at pin hole center
Equivalent load and angle: 5400 LB. (2449 KG.) Tensile force applied at a point of 55 inches (1.4 M) above pinhole center at an angle of 55 degrees off of vertical.
Rating: 3 person fall arrest anchorage when used in conjunction with an approved arrest tower and 900 lb. MAF devices on all connections
