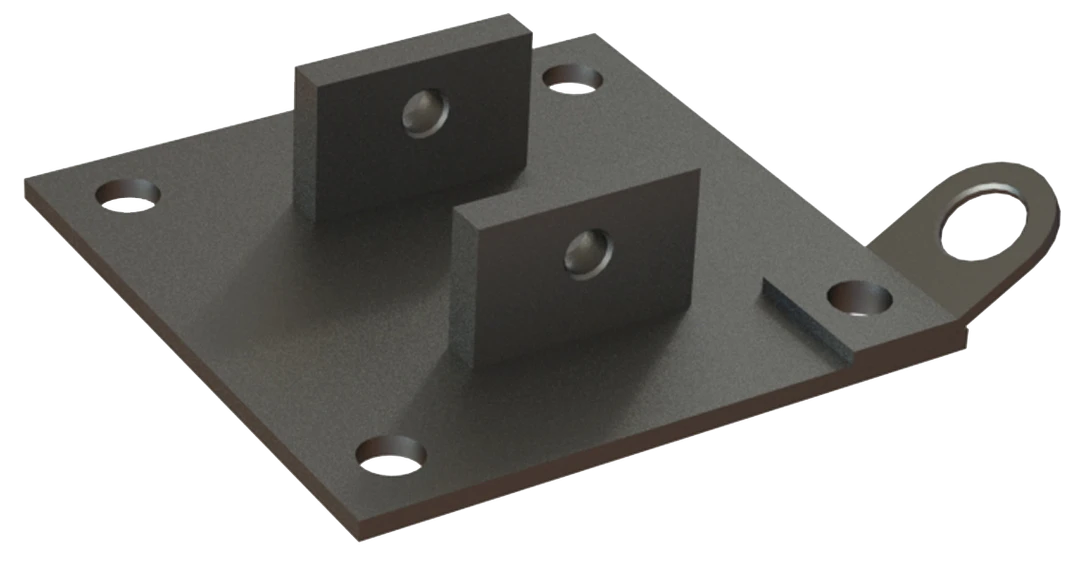

Pelsue - Bolt on Plate (For Fall Arrest Tower): FB-SB3

• Bolt on plate with tie-off anchor
• Made from the finest materials
• Includes mounting ears

About:
The Pelsue Model FB-SB3 Fall Arrest Tower base plate is intended to provide a bolt-on mounting point for any one of Pelsue’s FT & TFAT Series Fall Arrest Towers. The FB-SB3 does not require any welding for mounting and is designed to bolt to surfaces with existing studs or threaded bosses placed in an 8-1/2” square pattern. The FB-SB3 can, however, also be installed onto any suitable flat surface by adding mounting points or fastening via standard hardware.

General Specifications:
Product is designed and tested to be used as a mounting point for all Pelsue Fall Arrest Towers:
• When installed properly the FB-SB3 fall arrest base plate will support all of the proof loads required by any Pelsue Brand Fall Arrest Tower. Therefore, the system rating is dependent upon the capabilities of the tower pinned into the plate and not upon the base plate itself.
• Pelsue can not verify compatibility and compliance when utilized with any other brand or make of fall arrest structure.
• Mounting of the FB-SB3 should always be undertaken according to the requirements provided below.

Materials & Construction:
Welded A36 Steel

Weight:
16-1/2 LBS. (7.5 Kg)
