Pelsue Expandable Fall Arrest Post

Now: $5,595.00
SKU:
TFAT-11A

Product Description

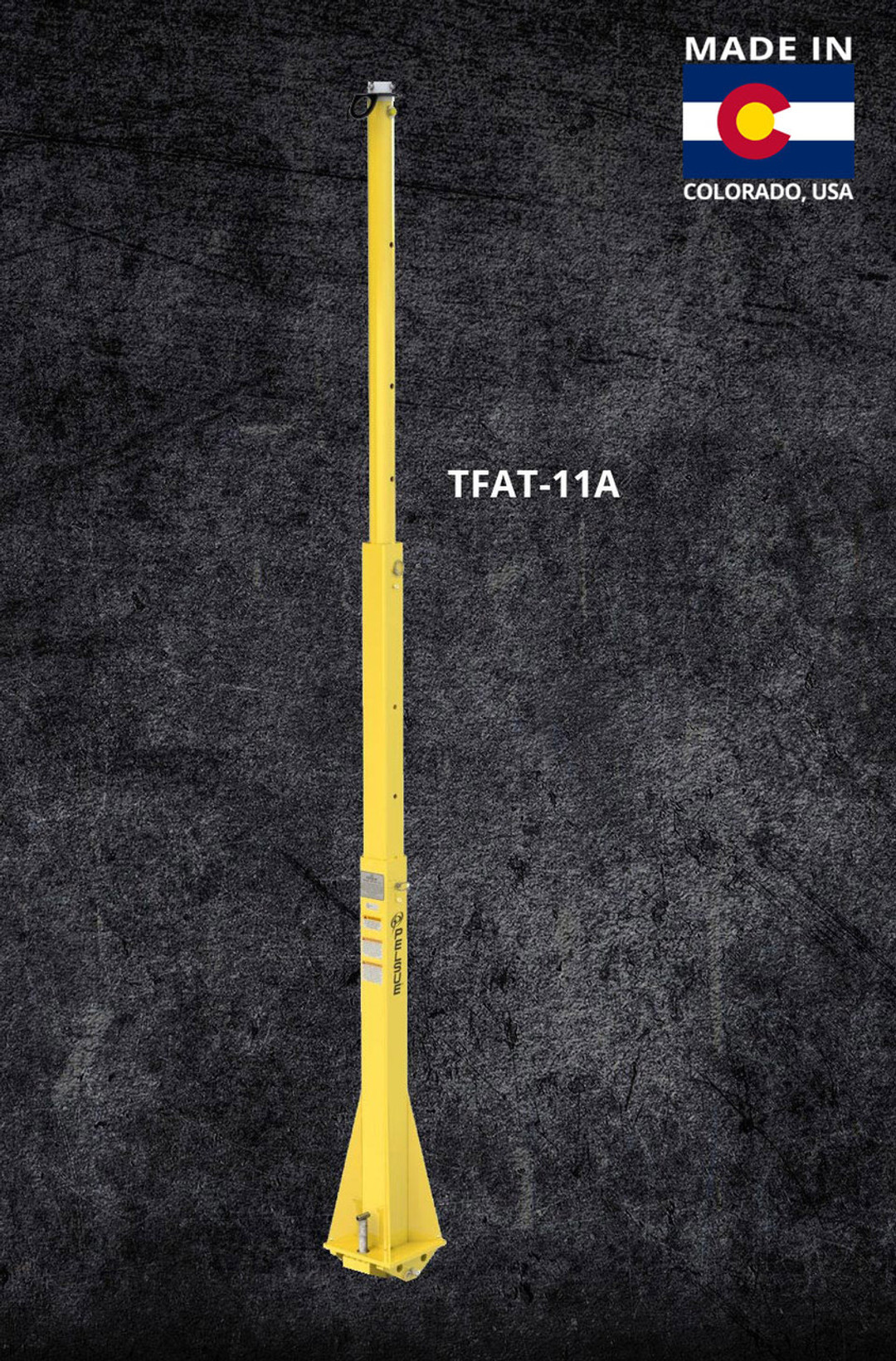

The Expandable Fall Arrest Post is a great alternative to the Uni-Lite Portable Fall Arrest Post. The post, using a pin attachment, can raise from 7' - 11' for greater functionality, where the mounting location may require a higher anchor point.

The Expandable Fall Arrest Post is a standalone system which provides a single person tie-off and doesn't require any additional accessories to expand the height of the post.

The system is man rated to 310 lbs.

Expandable Fall Arrest Post Dimensions & Weight

Model: TFAT-11A - 7' - 11' Weight: 75 lbs.

Compatible Base Plates

FB-SW1 - Weld on fall arrest base plate Weight: 12 lbs.

FB-SB1 - Bolt on fall arrest base plate Weight: 16.5 lbs.

FB-SW3 - Weld on fall arrest base plate with tie-off anchor Weight: 12 lbs.

FB-SB3 - Bolt on fall arrest base plate with tie-off anchor Weight: 16.5 lbs.

FB-BT1 - Bolt on fall arrest base plate adapter Weight: 17.2 lbs.

FB-RB1 - Round fall arrest base plate for stud weld Weight: 16 lbs.

FB-RW1 - Weld on fall arrest base plate with mounting ears 12" round Weight: 16 lbs.

FB-FM1 - Fall arrest base plate, bolt-on, first person up anchor Weight: 13 lbs.

BC-16S - Beam clamp - adjustable 8-3/4" - 16" I-Beam Weight: 40 lbs.
