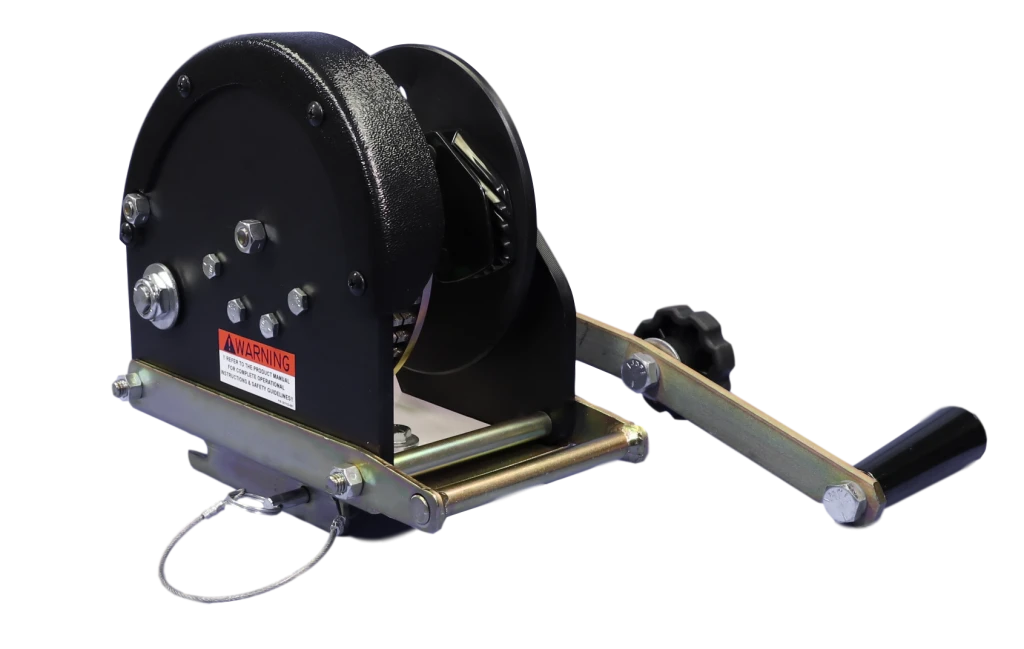

Pelsue 70’ Technora® Rope and ANSI Z359 Swivel Snap Hook Quick Rescue Hoist

The Pelsue PHQR Series hoist is designed to be a personnel rescue and retrieval device. The PHQR Series hoist shares many of the same qualities and capabilities as a standard PH series hoist but is unique in the fact that the lifting rope is not permanently fixed to the hoist drum. The hoist drum incorporates a rope gripping cleat into which the rescue line can be placed when a retrieval or rescue becomes necessary. This unique feature allows for extremely fast retrieval as there is no need to take up slack in the rescue line as the rope can be gripped at any location along its length. The separation of the rope from the hoist also addressees a safety concern when working in underground manhole vaults that can only be entered roadside where the potential for an out of control vehicle dragging away the retrieval system is possible.

The model #PHQR & #PHQRR do not include rope & hook assemblies, but a wide variety of sub-models are available with varying lengths of rope and differing snap hooks & end fittings. The PHQR series can coil a maximum of 70’ of 1/4” synthetic rope. The use of wire rope is not possible on the PHQR series hoist. The PHQR hoist is equipped with a standard Pelsue Quick-Release bracket (#501073-001). Other adapter brackets can be supplied or added upon request.

Detailed Specifications: Pelsue PHQR Series hoists are designed and tested as Mechanical Retrieval Devices as defined in OSHA 1910.146 & ANSI Z117.1. PHQR Series hoists are approved for use with personnel and are intended to facilitate positioning and rescue / retrieval operations when required. Model: PHQR Series Man-Rated Hoist PHQR HOIST PHQRR HOIST WITH ROPE Load Capacity.............. 310 LBS. (141 KG) *[Capacity is valid only when there are 4 complete wraps of rope on the drum]
