C&S Supply Wye Valve Spare Parts for WV15 or WV2515 - 1.5" Male Adapter Outlet | Z-1726

C&S Supply Wye Valve Spare Parts for WV15 or WV2515 - 1.5" Male Adapter Outlet | Z-1726

C&S Supply Wye Valve Spare Parts for WV15 or WV2515 - 1.5" Male Adapter Outlet | Z-1726

C&S Supply Wye Valve Spare Parts for WV15 or WV2515 - 1.5" Male Adapter Outlet | Z-1726

Now: $40.60

SKU:: Z-1726
Availability:: Ships in 24 to 48 hrs

Email
Print

Product Description

Z-1726 | The C&S Supply Male adapter for WV15 or WV2515 Specify threads. (Item. 15)

Features

Lightweight aluminum construction
Hard anodized
1-1/2" Male adapter outlet
Only for WV15 or WV2515 valves.
Specify threads - NST or NPSH

Additional Information

Weight: 0.50 LBS

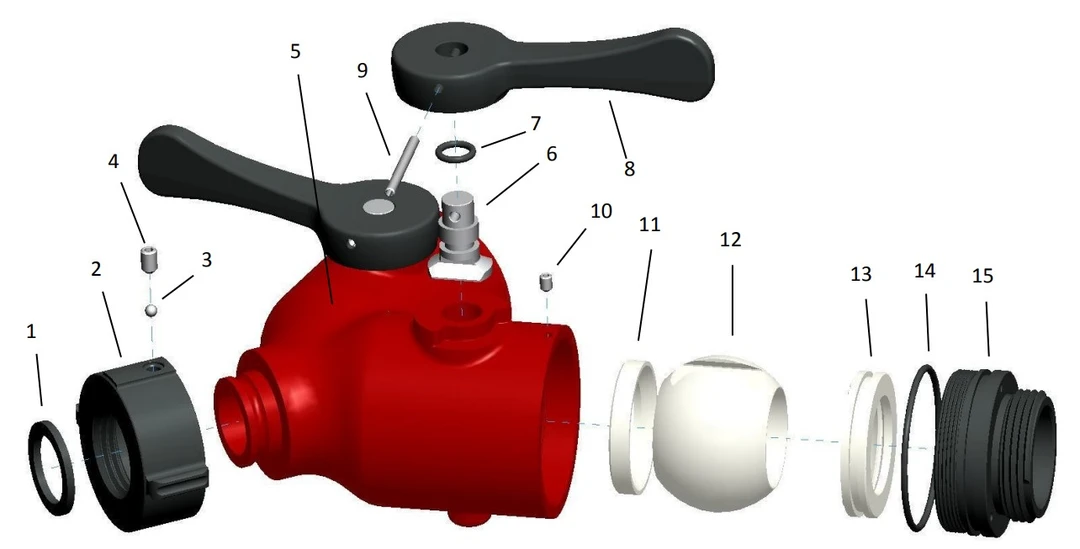

WV2515 / WV2510 Spare Parts

ITEM	QTY	P/N	DESCRIPTION	MATERIAL
1	1	GASKET 25	GASKET, 2.5"	SBR-70-BLACK
2	1	1603_NH	SWIVEL NUT, 2.5" NST	6061-T6 ALUM
3	45	1611	BALL BEARINGS, 3/16"	303 STAIN STL
4	1	1610	SET SCREW, 1/4"-28 X 3/8"	6061-T6 ALUM
5	1	1702	BODY, WYE, 2510/2515	356-T6 ALUM
6	2	1718	SHAFT	6061-T6 ALUM
7	2	0-111	O-RING, SHAFT	BUNA-70
8	2	1742	HANDLE	6061-T6 ALUM
9	2	1708	ROLL PIN, 5/32" X 1.75"	303 STAIN STL
10	2	1724	SET SCREW, 10"-32 X 3/16"	BLACK STL
11	2	1711	BALL SEAT	NYLON
12	2	1715	BALL	NYLON
13	2	1722	BALL SEAL	TPU
14	2	0-141	O-RING MALE END	BUNA-70
15A	2	1726_NH	OUTLET, MALE 1.5" NST	6061-T6-ALUM
15B	2	172_NP	OUTLET, MALE 1.3' NPSH	6061-T6-ALUM
15C	2	1725_NH	OUTLET, MALE 1" NST	6061-T6-ALUM
15D	2	1725_NP	OUTLET, MALE 1" NPSH	6061-T6-ALUM
