C&S Supply 2.5" Ultrabore Viper 2.0 Ball Shutoff with 1-1/8" Integrated Smooth Bore Tip | VBU250-IB265

Now: $536.20
SKU:
VBU250-IB265
Availability:
Ships in 24 to 48 hrs

Product Description

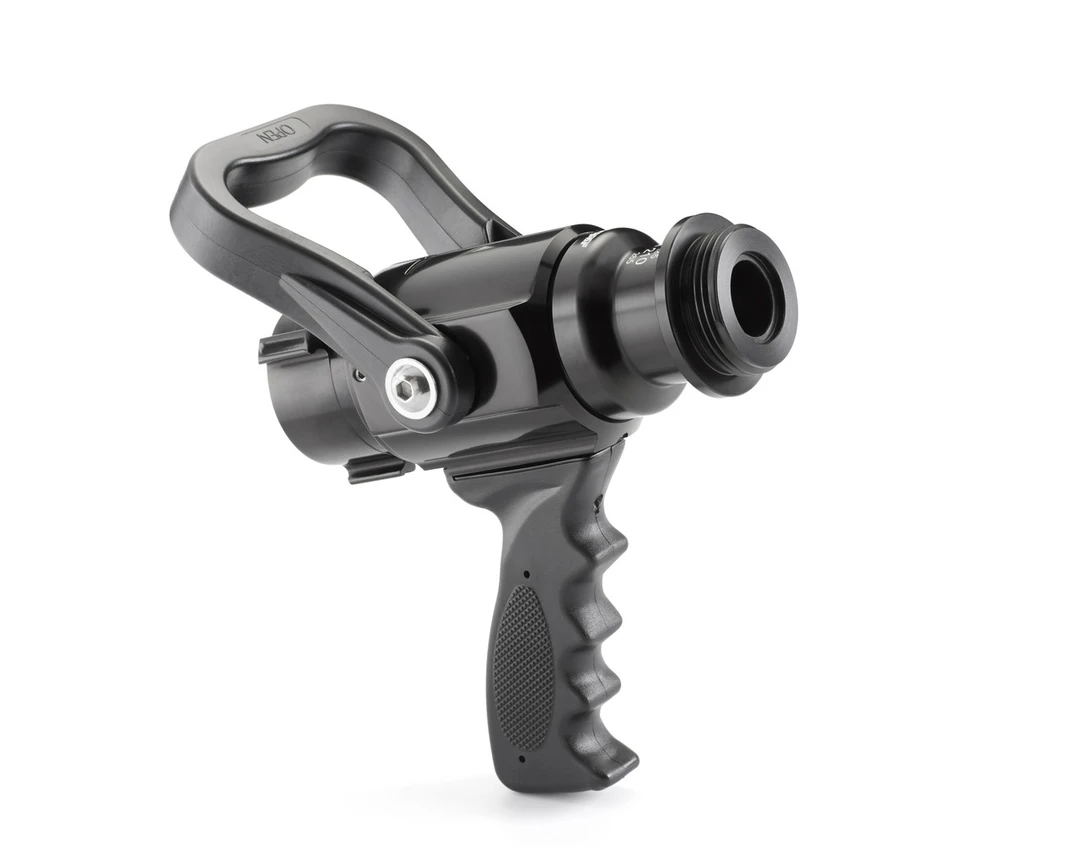

VBU250-IB265 | The C&S Supply 2.5" VIPER 2.0 Ball Shut off with 1-3/8" Waterway and integrated 1-1/8" Smooth Bore, Swivel & Pistol Grip. VIPER Ball Shut Offs have Full Time Swivels.

Features

  • 2 1/2" CAFS shutoff with 1 1/8" smooth bore tip-210 GPM @ 50 psi
  • Smooth Bore capabilities
  • 1 3/8" full waterway
  • Removable debris inlet screen
  • Dual drive system
  • Max working pressure 580 psi
  • NST threads only

Additional Information

  • Weight: 3.20 LBS
  • Width: 10.00 (in)
  • Height: 8.00 (in)
  • Depth: 5.00 (in)
SMOOTH BORE THEORETICAL FLOW DATA/ GPM
PSI 3/16" 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 15/16" 1" 1 1/16" 1 1/8" 1 1/4"
40 6.5 11 27 48 73 107 143 166 189 212 239 295
50 7.5 13 31 54 82 119 160 186 211 237 267 329
60 8 14 32 57 89 129 176 202 230 259 291 359
80 9.3 16.6 37 66 103 149 203 233 265 299 336 415
100 10 18 43 75 116 168 227 262 298 335 377 465
