Pelsue - Beam Clamp (For Fall Arrest Tower): BC-08A

Now: $6,575.00
SKU:
BC-08A

Product Description

  • Beam clamp
  • Fall arrest tower anchor
  • Adjustable from 3 1/2 in. to 8 in.
  • Made from the finest materials

About:

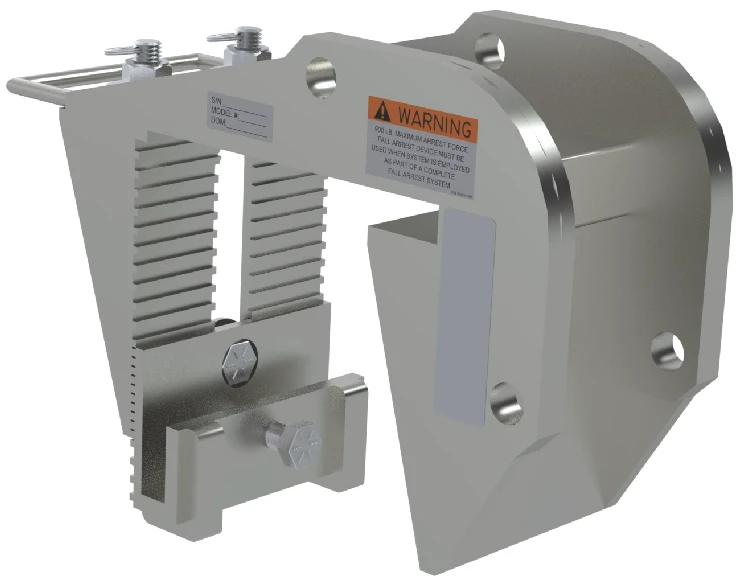

The Pelsue Adjustable Angle Clamp is constructed from carbon steel and has steel hardware. The Adjustable Angle Clamp is specifically designed to provide a portable mounting base for a fall arrest tower on structural angle sections. The clamp can be installed in two different configurations depending on the orientation of the angle beam. The #BC-08A is designed to fit on a number of different size angles that can range from 3.5” to 8” and a flange thickness ranging from 3/16” to 3/4”. All specifications provided are based upon and only valid for usage with Pelsue Fall Arrest Tower Model #FT-C70. The T.A. Pelsue Company can not verify equipment safety and/or compliance when utilized with any other system.

General Specifications:
Product is designed and tested to be used in a General Application:
1. As a portable Fall Arrest Tower mounting base
Man Rated Load Capacity Using Fall Arrest Tower....... Rating is determined by fall arrest tower.
Warning! A 900 LB. maximum arrest force (MAF) fall arrest device must be used when system is employed as part of a complete fall arrest system. Maximum weight of person upon anchorage is 350 LBS. (159 KG.) inclusive of all tools and equipment.
Materials & Construction:

General Construction: Welded Carbon Steel, Zinc Plated
• Hardware: Grade 8 Steel Zinc Plated Steel

Weight:
35 lbs. (15.9 kg)

Features:
• For portable usage on angular structural sections
• Can be installed in two configurations (normal & inverted) depending on beam orientation
• Provides a mounting base for a Pelsue Fall Arrest Tower Model #FT-C70
• Two adjustment bolts allow for various flange thicknesses
