Pelsue Davit Vehicle Hitch Mount System

Pelsue Davit Vehicle Hitch Mount System

$5,384.15
  • SKU: RK-HS1
  • Availability: Please call for availability 866.523.7168 **This Unit Only Works with the Included 18/24 Davit Arm
  • disabledmerchant: true
Availability: Please call for availability 866.523.7168 **This Unit Only Works with the Included 18/24 Davit Arm
  • Pelsue Personnel Hoist: 70' Stainless Steel Cable
  • Pelsue Quick Rescue Hoist: 45' Technora Rope
  • Pelsue Standard SRL: 25' Stainless Steel Cable
  • Pelsue Standard SRL: 25' Technora Rope
  • Pelsue 3-Way SRL 50' Stainless Steel Cable
  • Pelsue 3-Way SRL
In Stock & Ready To Ship!
Current Stock:Only left:
Description

The Hitch Mount Kit includes a vehicle hitch mount (VHS-A1), the davit system (DK1824), and a multi-directional vehicle hitch receptacle (HSJ2). Assembly also includes a standard Pelsue hoist mount bracket (MB-PF1). A hoist is not included.

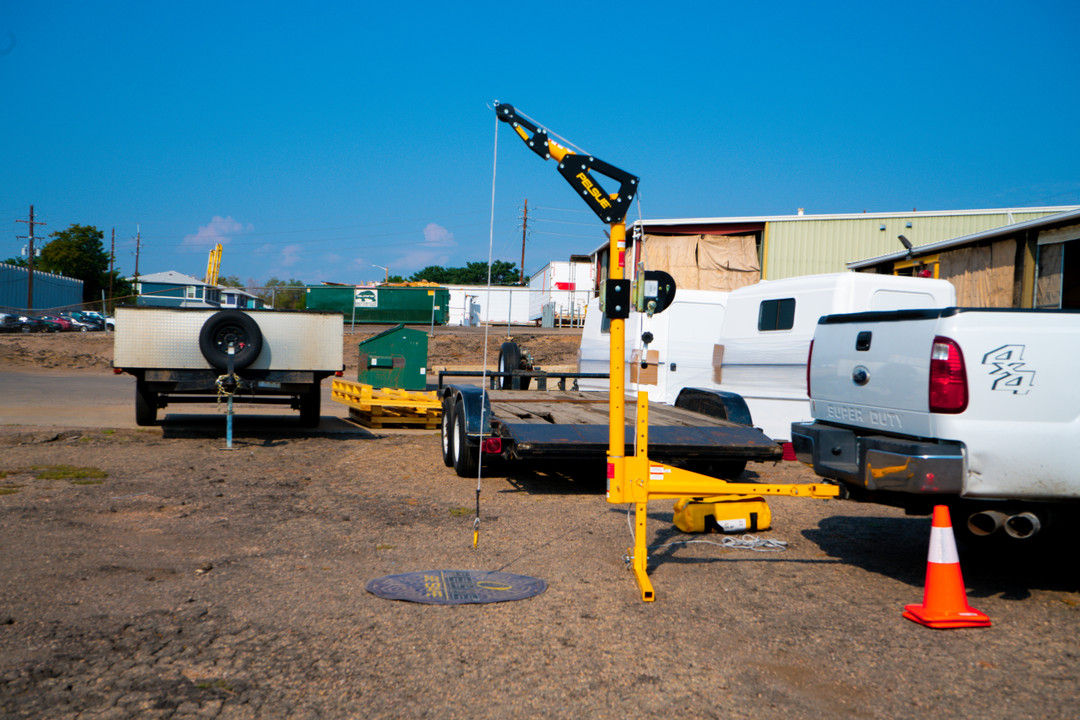

The Hitch Mount (VHS-A1) allows you to use your vehicle as the davit base. The hitch mount connects with 2” square vehicle receivers. You can use it to reach difficult
areas and drive right up to confined spaces.

All Pelsue Davit Systems are built from structural aluminum, allowing for lightweight and portable use. They are also specifically engineered to be fully set up in about 5 minutes. The Pelsue Davit System is proudly made in America with the highest quality materials to ensure the system will provide you years of service.

All Pelsue Davit Systems are man rated at 310 lbs.

Main Features

  • VERSATILE
  • LIGHTWEIGHT
  • EASY SET-UP

Vehicle Hitch Mount Weights

Davit Complete Arm (DK1824): 42 lbs.
Hitch Mount Base (VHS-A1): 48 lbs.
Vehicle Hitch Receptacle (HSJ2): 9 lbs.

Recommended Hoist Descriptions

Standard Hoist (PH07C): The Pelsue PH Series Hoists are designed and tested as retrieval and lifting devices as defined in OSHA Safety Standards for attaching a person that is entering or exiting a confined space.

Quick Release Retrieval Hoist (PHQR-T70): The Pelsue PHQR Series Hoists share nearly all the same features as the PH Series Hoists, but are unique in the fact that the lifting rope is not permanently fixed to the hoist drum.

Standard Self-Retracting Lifeline (PSRL1150-SS): Standard Self Retracting Lifelines (SRLs) are designed for use by construction workers, utility personnel, and maintenance repair employees needing on the job fall protection. They are also designed for confined space applications where fall protection and rescue & retrieval are extremely important.

3-Way Self-Retracting Lifeline (PSRL1350-TRB): If a worker slips or falls, the 3-Way SRL locks up to arrest the fall. The system can then be activated into winch mode, raising or lowering the worker to safety. The 3-Way is different than the standard SRL by adding retrieval/descender capabilities.

About Pelsue

Pelsue is the premier manufacturer of fall arrest and protection equipment. Based in Englewood, CO, Pelsue has been helping to keep workers safe since 1963.
