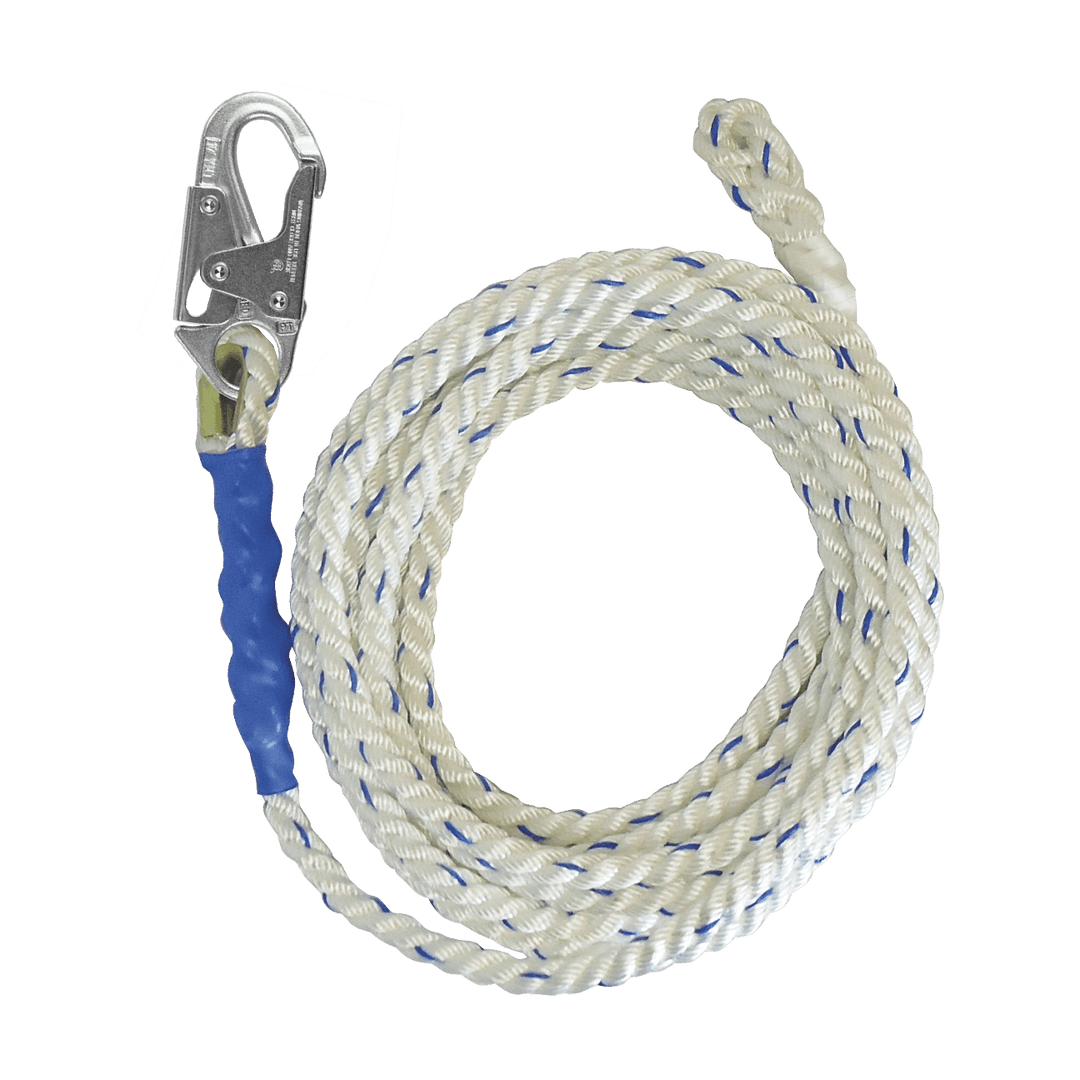

FallTech 50' VLL Snap Hook + Back Splice 5/8" White

FEATURES

• Constructed with 5/8" low-stretch 3-strand twisted rope
• Premium polyester blend reduces kinking and hockling.
• Steel thimble and splice-protecting shrink tube are included for lasting durability
• Includes alloy steel snap hook for anchorage connection
• Back-spliced trailing end is ideally suited for pairing with hinged arresters and adjusters
• Complies with ANSI Z359.15-2014

MATERIAL SPECIFICATIONS

• Rope: 3-strand twisted polyester blend; 5,000 lb min.
• Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Thimble: Plated carbon steel

PERFORMANCE SPECIFICATIONS

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

AVAILABLE SIZES

Note: Check out the VLL Snap Hook & Back Splice 5/8" White, VLL Snap Hook + Back Splice 5/8" White, and 25' VLL Snap Hook + Back Splice 5/8" White listings for more sizes.

DOWNLOADS

• Instruction Manual (ANSI)
• Instruction Manual (CSA)
• Declaration of Conformity (ANSI)
• Declaration of Conformity (CSA)
• Spec Sheet

COMPLIANT WITH:

1. CSA Z259.2.5-2017
2. OSHA 1926.502 and 1910.66
3. ANSI Z359.15-2014
