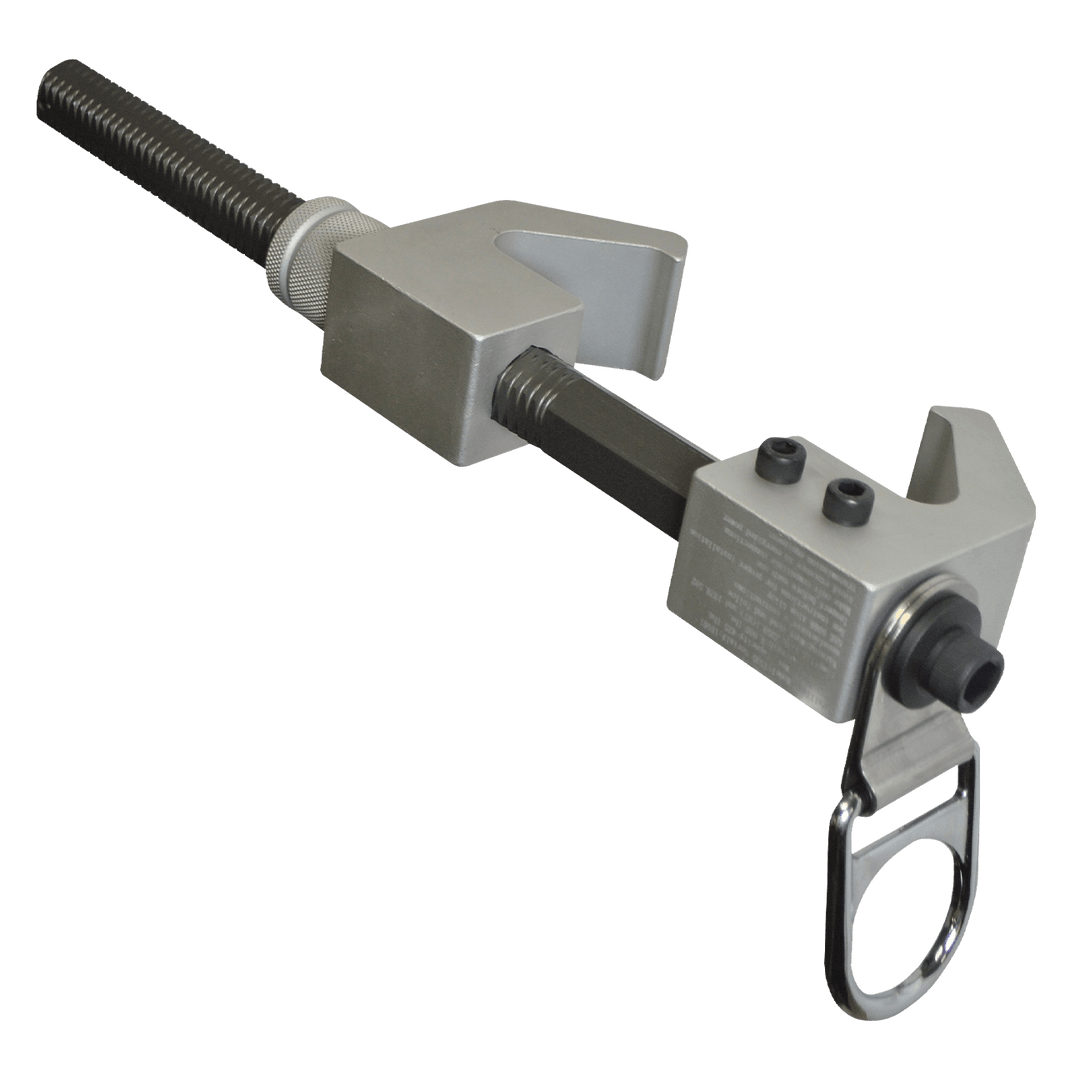

FallTech 24" Stationary Beam Clamp Anchor

FEATURES

• Features threaded aluminum crossbar and jaws with knurled rings for fine adjustment
• Single-jaw adjustment fits flanges from 7-3/4" to 24-1/2" wide and up to 2-1/4" thick.
• For permanent installation on vertical and horizontal I-beams
• Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS

• D-ring: Plated alloy steel; 5,000 lb min. static strength
• Crossbar: Aluminum alloy
• Clamp Jaws: Aluminum alloy

PERFORMANCE SPECIFICATIONS

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
2. ANSI Z359.18-2017
