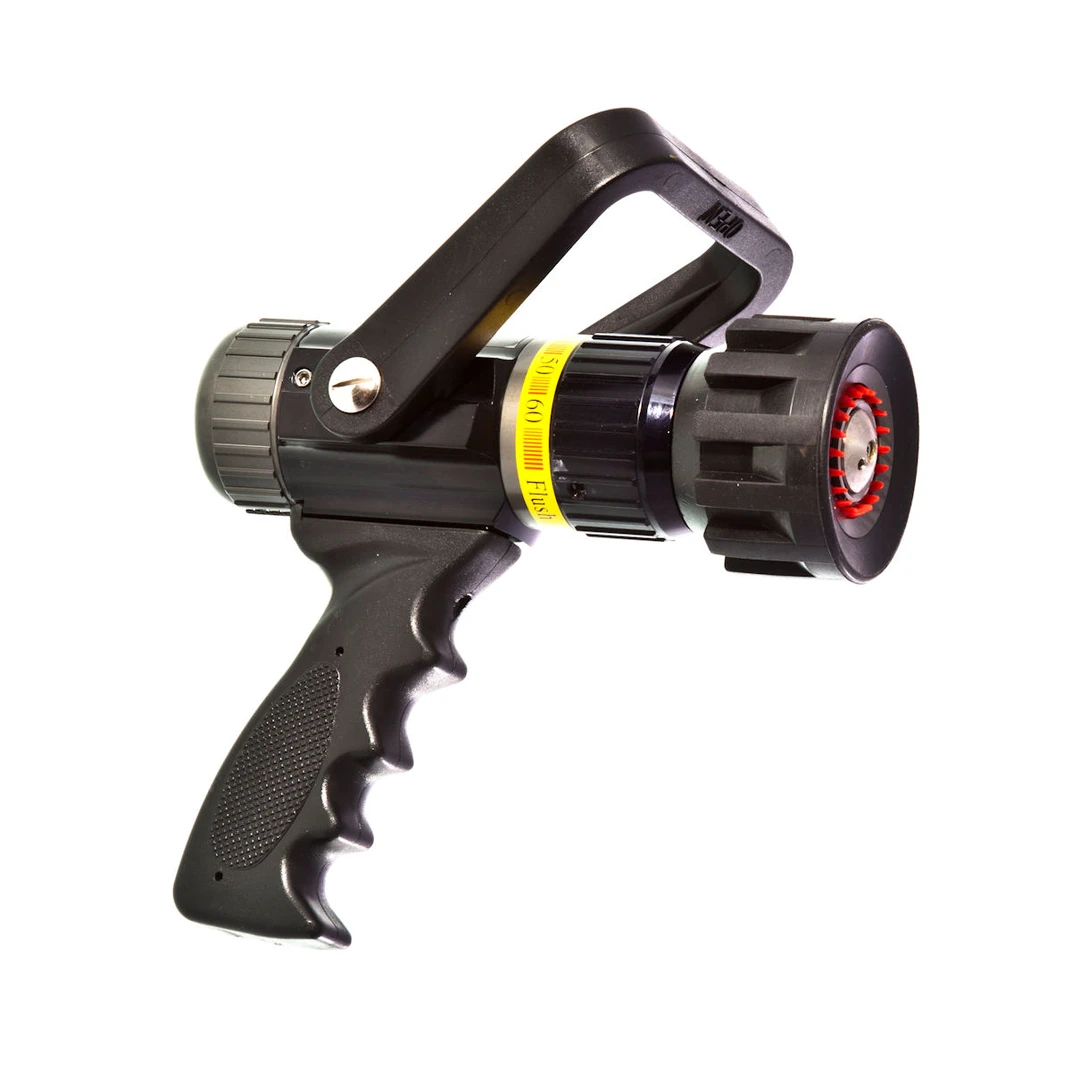

C&S Supply 15 - 60 GPM 1" Viper Select Gallonage Nozzle | SG1560

SG1560 | The C&S Supply 15-30-50-60 GPM 1" VIPER Select Gallonage Nozzle is a constant flow through fog and straight stream nozzle. This model comes with Composite Bail Handle & Pistol grip.

Features

• 1" NST or 1" NPSH available
• 4 gallonage selection ring, 15, 30, 50, 60, without pattern change
• Flush without shutting down
• Constructed of E-LITE aluminum with brass internal parts
• Compact, Simple, Low maintenance, Light-weight
• Constant flow through Fog to Straight Stream with the turn of the bumper
• Ergonomically designed for easy operation and handling
• Spinning teeth offer a wide, complete coverage fog pattern
• Comes with Composite Bail Handle & Pistol grip
• Pistol grip can be removed
• Working pressure is 100psi, 50 and 75 psi options available
• Shutoff handles available in colors to match pre-connect lines: Red, Yellow, Orange, Blue, Green

Additional Information

• Weight: 3.60 LBS
• Width: 8.00 (in)
• Height: 10.00 (in)
• Depth: 5.00 (in)
