C&S Supply 1.5" Straight Bore Nozzle with 1/2" Outlet | STBR-1/2

C&S Supply 1.5" Straight Bore Nozzle with 1/2" Outlet | STBR-1/2

C&S Supply 1.5" Straight Bore Nozzle with 1/2" Outlet | STBR-1/2

Now: $86.10

SKU:: STBR-1/2
Availability:: Ships in 24 to 48 hrs

Email
Print

Product Description

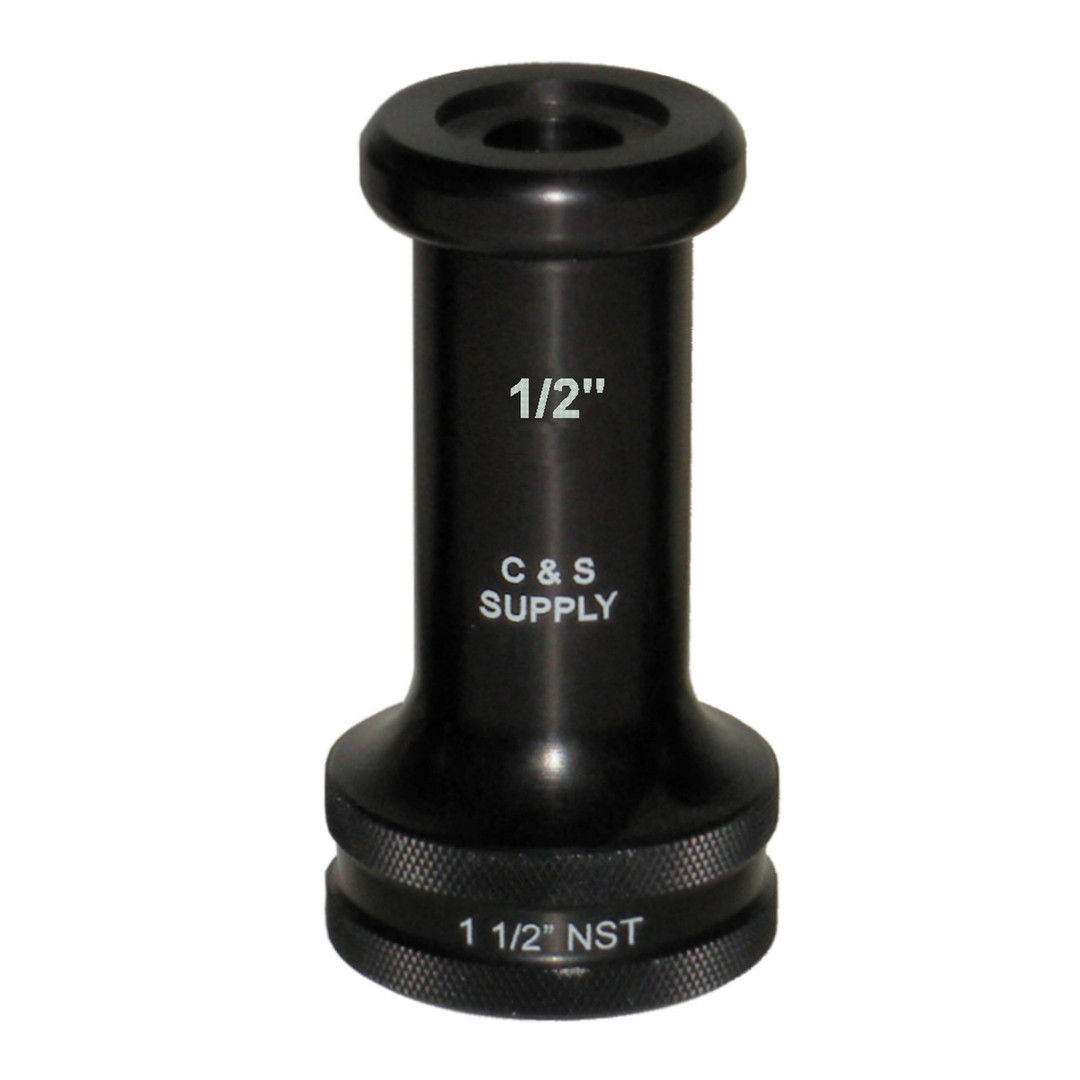

STBR-1/2 | The C&S Supply 1/2" Outlet, 1-1/2" Rigid Base Straight Bore nozzle.

Features

Consists of Viper shut-off valve made of light-weight and durable hard coated E-lite alloy
Nozzle tips feature a rugged hard anodized aluminum construction
Gradual internal down slope to specific orifice size for optimum stream quality
HUGE savings when purchased as one unit
Available 1.5” in NST and NPSH threads

Additional Information

Weight: 0.80 LBS
Width: 4.00 (in)
Height: 4.00 (in)
Depth: 5.00 (in)

SMOOTH BORE THEORETICAL FLOW DATA/ GPM
PSI	3/16"	1/4"	3/8"	1/2"	5/8"	3/4"	7/8"	15/16"	1"	1 1/16"	1 1/8"	1 1/4"
40	6.5	11	27	48	73	107	143	166	189	212	239	295
50	7.5	13	31	54	82	119	160	186	211	237	267	329
60	8	14	32	57	89	129	176	202	230	259	291	359
80	9.3	16.6	37	66	103	149	203	233	265	299	336	415
100	10	18	43	75	116	168	227	262	298	335	377	465
