C&S Supply 1.5" Straight Bore Nozzle with 1-1/4" Outlet | STBR-1-1/4
$127.00
Quantity:
Availability: Ships in 24 to 48 hrs
Live Chat Support
Fast Shipping
Bulk Discounts Available
Family Owned Business
Product Description

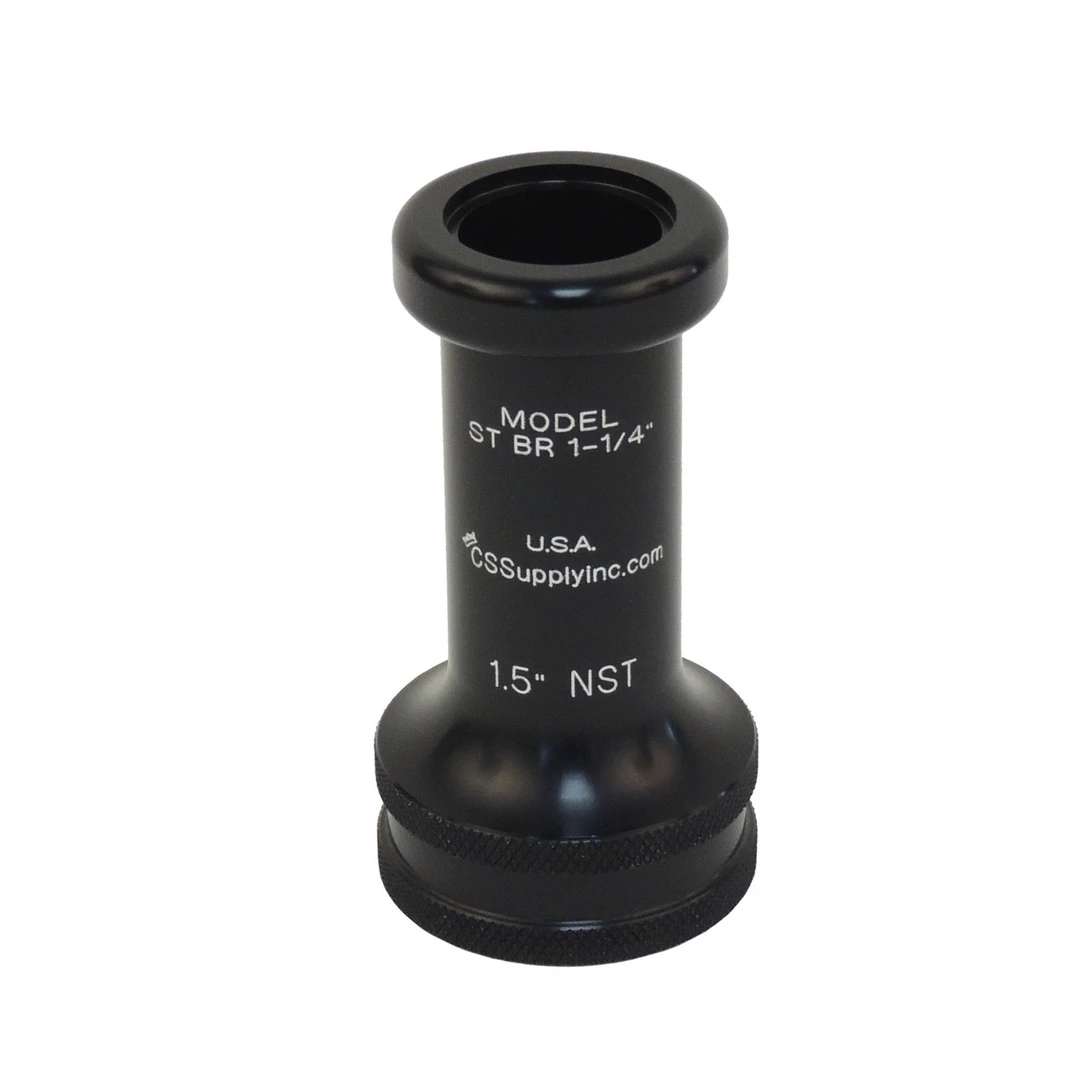

STBR-1-1/4 | The C&S Supply 1-1/4" Outlet, 1-1/2" Rigid Base Straight Bore nozzle.
Features
- 1-1/4" Outlet
- Consists of Viper shut-off valve made of light-weight and durable hard coated E-lite alloy
- Nozzle tips feature a rugged hard anodized aluminum construction
- Gradual internal down slope to specific orifice size for optimum stream quality
- HUGE savings when purchased as one unit
- Available 1.5” in NST and NPSH threads
Additional Information
- Weight: 1.00 LBS
- Width: 4.00 (in)
- Height: 4.00 (in)
- Depth: 5.00 (in)
| SMOOTH BORE THEORETICAL FLOW DATA/ GPM | ||||||||||||
| PSI | 3/16" | 1/4" | 3/8" | 1/2" | 5/8" | 3/4" | 7/8" | 15/16" | 1" | 1 1/16" | 1 1/8" | 1 1/4" |
| 40 | 6.5 | 11 | 27 | 48 | 73 | 107 | 143 | 166 | 189 | 212 | 239 | 295 |
| 50 | 7.5 | 13 | 31 | 54 | 82 | 119 | 160 | 186 | 211 | 237 | 267 | 329 |
| 60 | 8 | 14 | 32 | 57 | 89 | 129 | 176 | 202 | 230 | 259 | 291 | 359 |
| 80 | 9.3 | 16.6 | 37 | 66 | 103 | 149 | 203 | 233 | 265 | 299 | 336 | 415 |
| 100 | 10 | 18 | 43 | 75 | 116 | 168 | 227 | 262 | 298 | 335 | 377 | 465 |
