Pelsue Uni-Lite Portable Fall Arrest Post + AC-34R Anchor Clamp (19"-34")

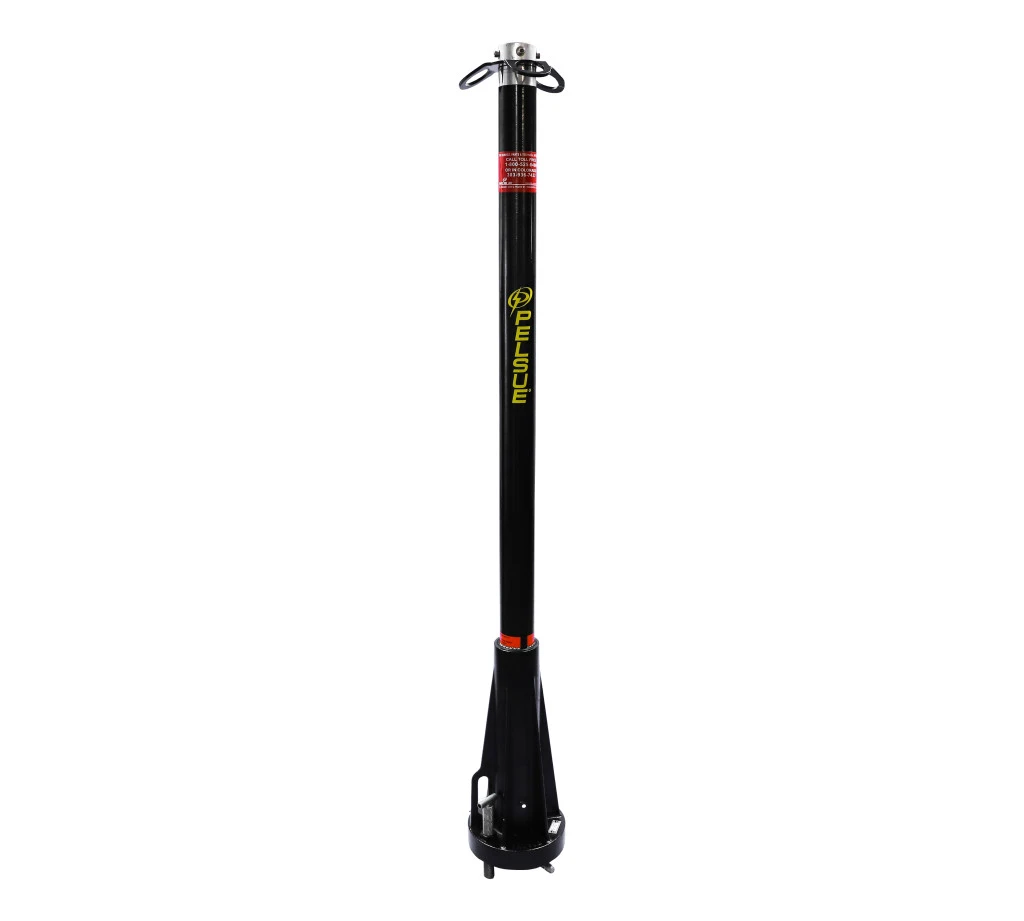

The FT-C70 Uni-Lite Fall Arrest Post's carbon fiber construction keeps it light enough to lift and reposition on site, while its flexible design absorbs fall force and its 360° swivel upper insert supports up to three-person tie-off with three 5.8' anchor points. Post dimensions: 9"D x 6'H, 39 lbs.

Paired here with the AC-34R Manway Anchor Clamp, designed to provide a portable mounting point for the FT-C70 on round manways. Telescoping tube sections extend via a speed handle, placing two rounded jaw plates underneath the manway flange to anchor the clamp; grip is adjustable for varying flange thicknesses. It anchors to manways with an outside flange diameter between 19" and 34" and a flange thickness of up to 1-1/4". Constructed of steel with a durable electroless nickel-plated finish.

AC-34R General Specifications:

• Approved as a portable mounting base for the FT-C70 when both products are used per their respective manuals
• Man-rated load capacity using the fall arrest tower is determined by the tower itself
• Warning: a 900 lb. maximum arrest force (MAF) device must be used as part of a complete fall arrest system; maximum weight of the person on the anchorage is 310 lbs. (141 kg) inclusive of all tools and equipment

AC-34R Materials & Construction:

• General construction: Welded carbon steel, electroless nickel plating
• Hardware: Grade 5 zinc-plated steel

AC-34R Weight: 59 lbs. (26.8 kg)

AC-34R Features:

• Portable Fall Arrest Tower base for installation on manways
• Telescoping tube sections and adjustable plates allow maximum adjustment
• Provides an approved mounting base for the FT-C70

An optional Carrying Case is available at checkout.
